Key Features

► 802.11a/b/g/n/ac/ax + Bluetooth 5.3

► 2T2R 80M (2 ANT)

► PCle&UART

► -30~85℃

Descriptions

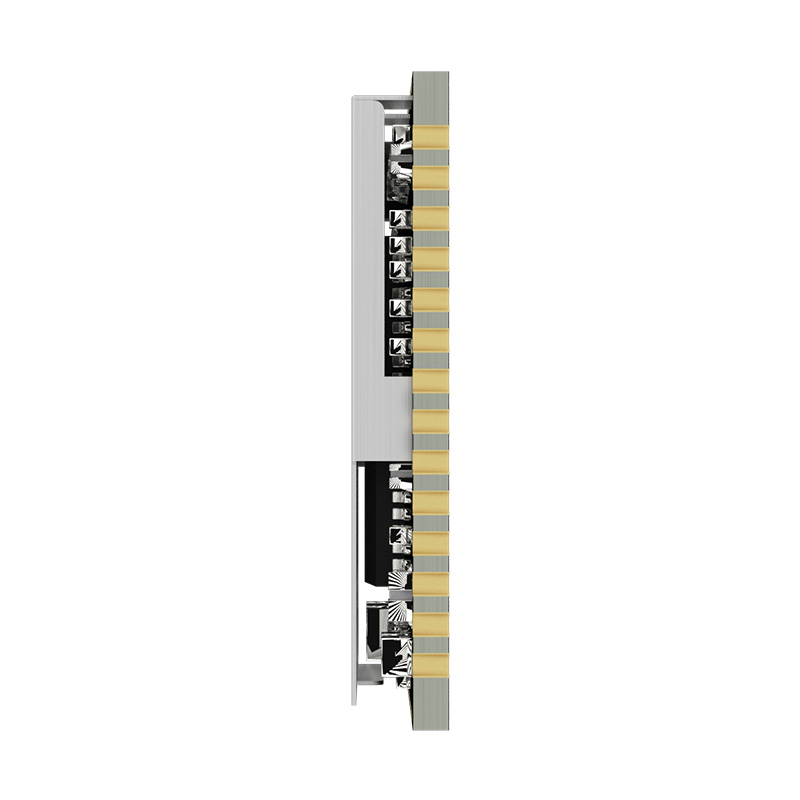

The BW3752-50B3 is a highly integrated module that supports 2T2R 802.11 a/b/g/n/ac/ax with WirelessLAN(WLAN) PCIe interface controller and Bluetooth 5.3 HS-UART interface controller. It combined with BPSK, QPSK,16QAM, 64QAM, 256QAM and up to 1024QAM modulation of the individual subcarriers, and compatiblecodingrateof 1/2, 2/3, 3/4, 5/6, provide up to 1201Mbps for IEEE 802.11ax MIMO OFDM. In addition, this compact moduleisatotal solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for tablet, OTTboxand portable devices
