Key Features

► 802.11a/b/g/n/ac + Bluetooth 5.2

► 1T1R 80M

► USB&UART

► -30~85℃

Descriptions

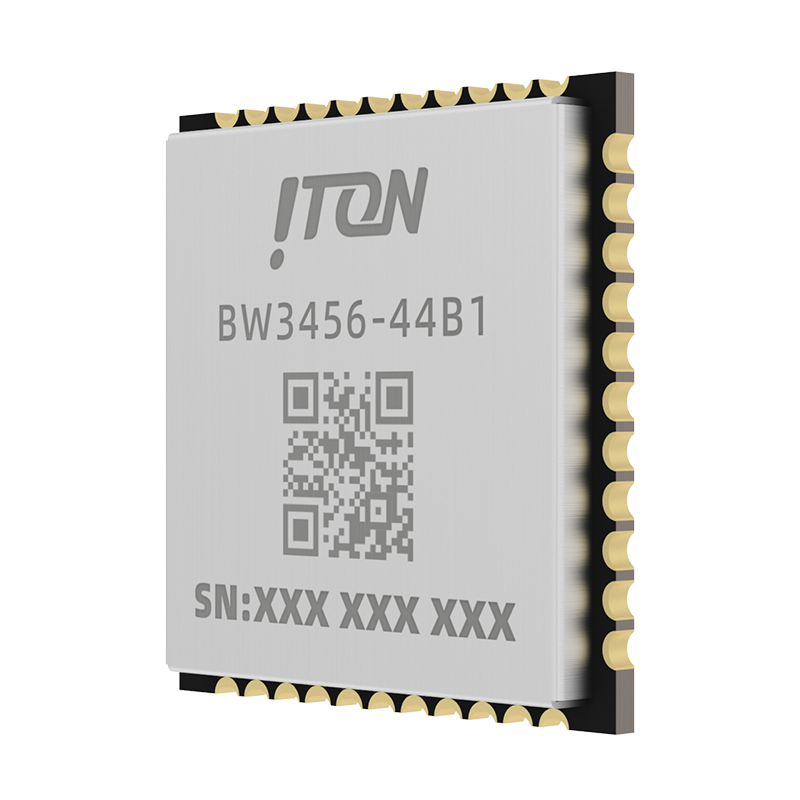

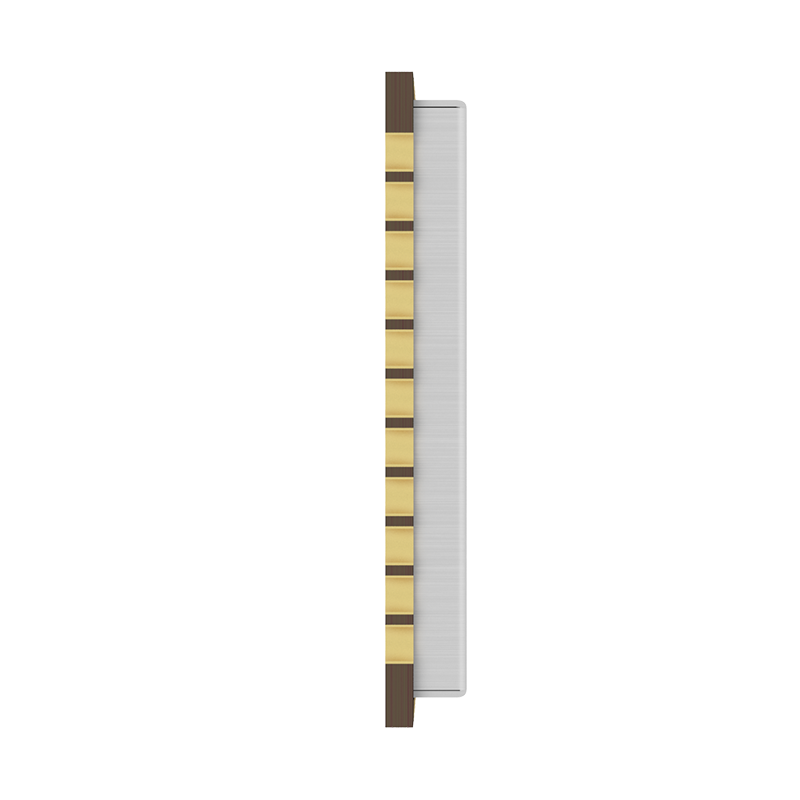

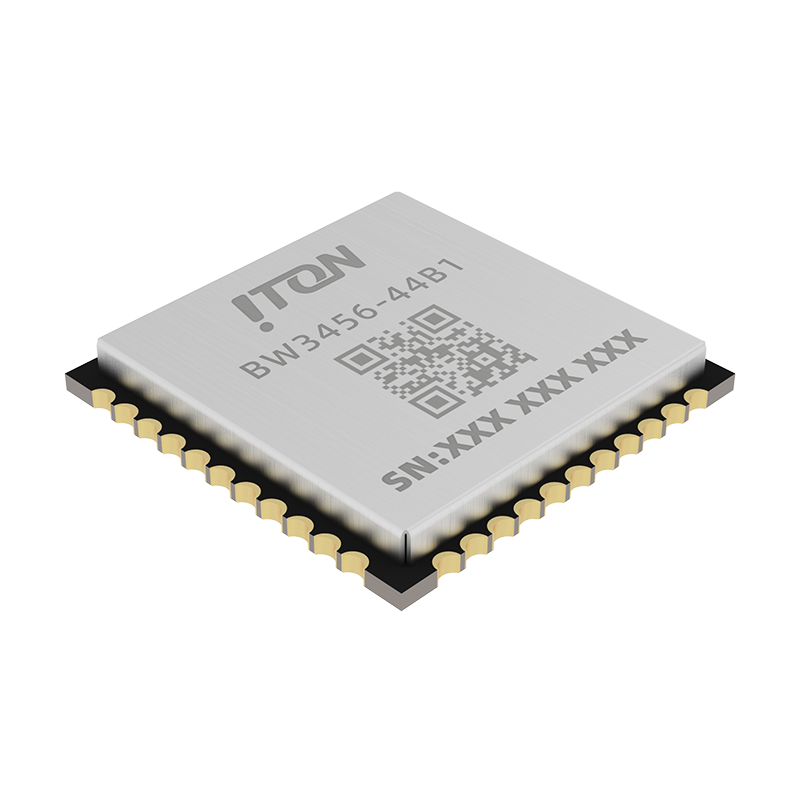

The BW3456-44B1 module is a complete dual-band (2.4 GHz and 5 GHz) Wi-Fi 1 × 1 MAC/baseband/RadioSystem-on-a-Module. It provides the highest level of integration for IoT applications handheld wirelesssystems.InIEEE 802.11ac mode, the WLAN operation supports rates of MCS0–MCS9 (up to 256 QAM) in 20 MHz, 40MHz, and80 MHz channels for data rates up to 433.3 Mbps. In addition, all the IEEE 802.11a/b/g/n rates are supported.
